M2 cusing

M2 cusing #0M2 cusing #1M2 cusing #2M2 cusing #3

Properties

Build Volume 254 x 254 x 280 mm (10 x 10 x 11 in.)
Layer Resolution Low 80 micron (0.003 in.)
Layer Resolution High 20 micron (0.001 in.)

Documents

MarqueConcept Laser Machines
Type de Machine 3D Printer
La technologie Frittage laser direct de métal (DMLS)
Matériaux Cobalt-Chrome, Stainless Steel 17-4 PH, Aluminium Alloy AlSi12, Stainless Steel 316L, Titanium Ti64, Aluminium AlSi10Mg, Inconel 718
Site Internethttps://www.concept-laser.de/en/products/machines.html
Prix ​​moyen Contacter le fabricant

À propos M2 cusing

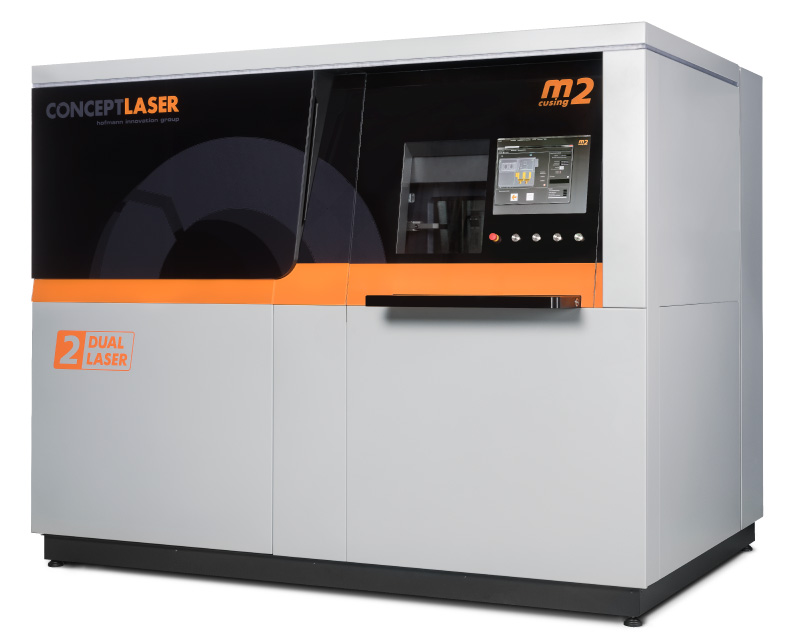

The M2 cusing and M2 cusing Multilaser are designed in line with ATEX guidelines and thus make it possible to reactive materials safely. Like all machine solutions from Concept Laser, the M2 cusing/ M2 cusing Multilaser also boast physical separation of the process chamber and handling area to make them user-friendly and safe to operate.

The machine is robust and suitable for 3-shift operation. In addition, the laser source and filter technology are integrated within the system, which results in a low space demand overall. The large filter surface area of 20 m2significantly reduces the filter change intervals, thus increasing the level of machine availability. Moreover, the M2 cusing/ M2 cusing Multilaser boasts a water-floodable filter as standard, thus guaranteeing that the filter can be changed safely. In comparison to the M2 cusing, the M2 cusing Multilaser is available with two lasers.

Build envelope: 250 x 250 x 280 mm3 (x,y,z)

M2 cusing laser system: Fibre laser 200 W (cw), optional 400 W (cw)

M2 cusing Multilaser laser system: Fibre laser 2 x 200 W (cw)
